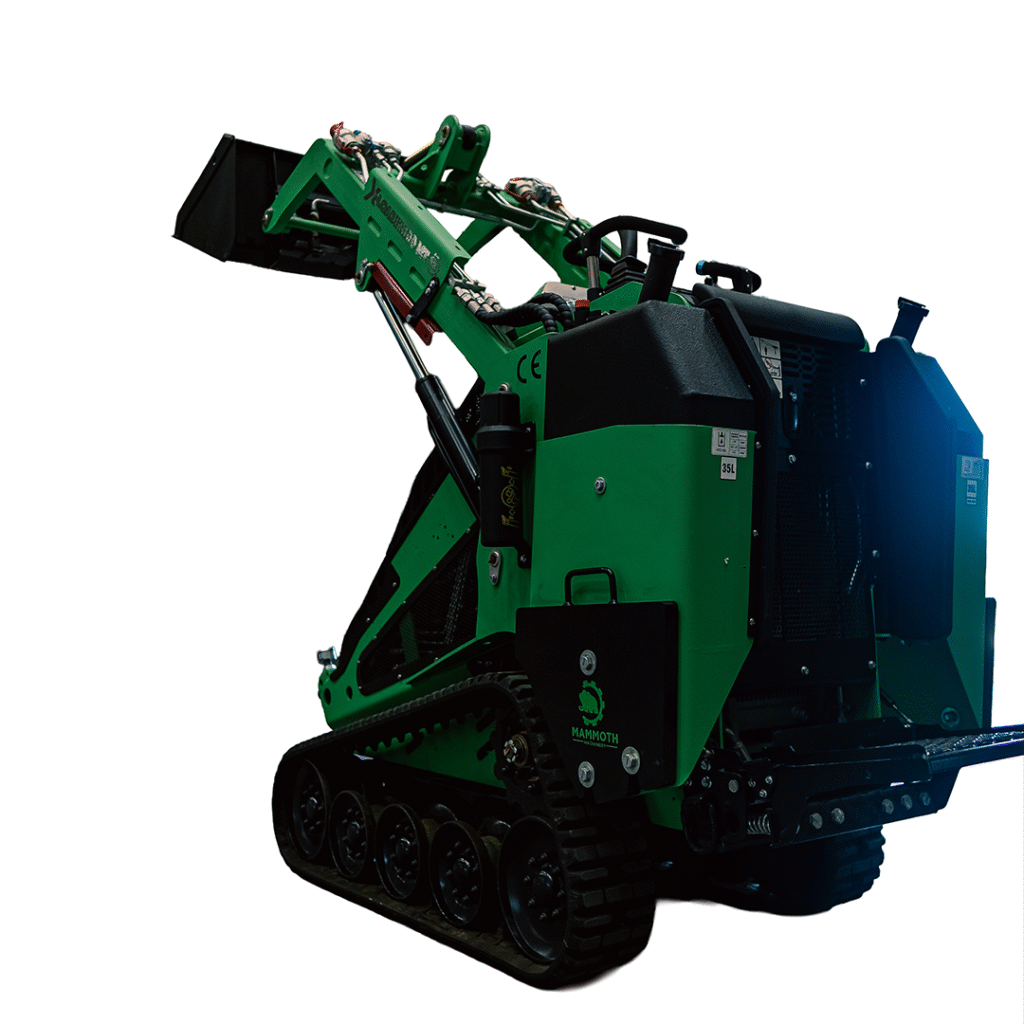

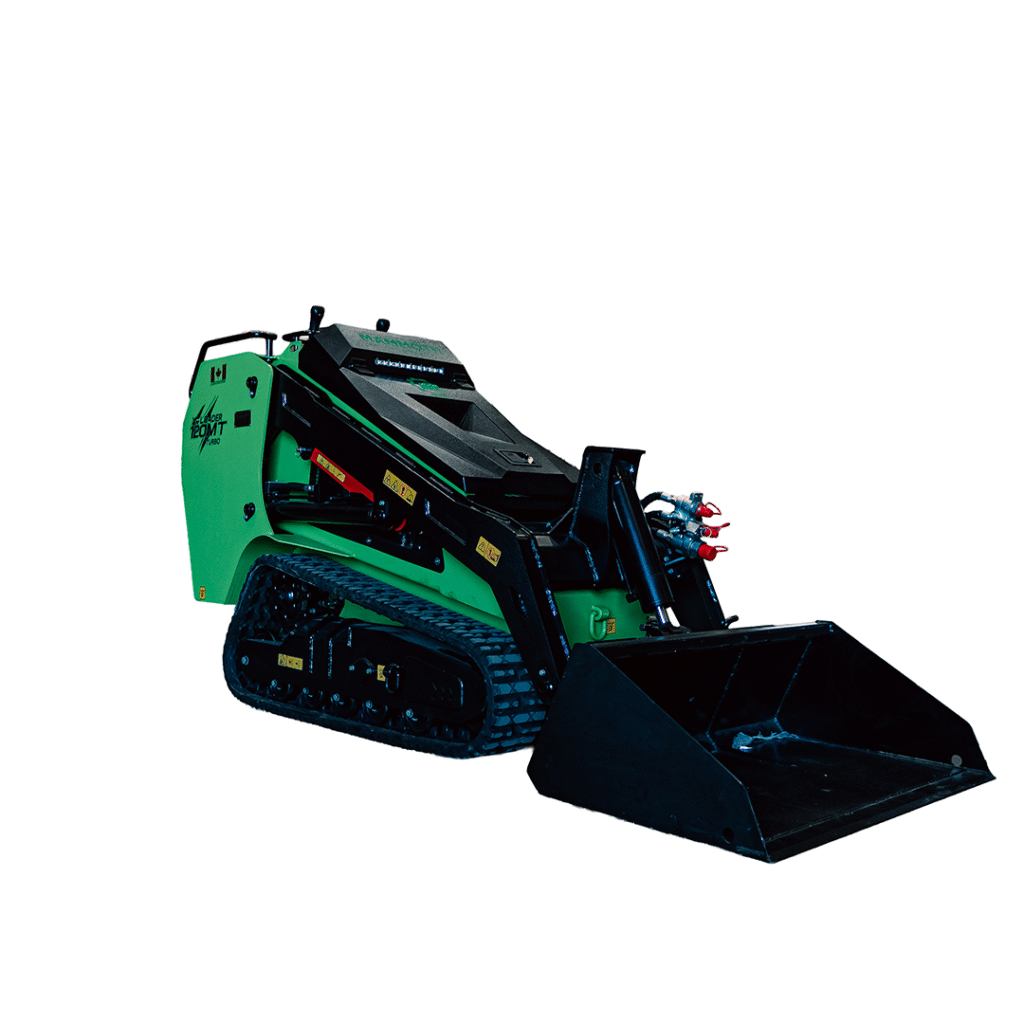

X-loader 120MT Mini Skid Steer
The X-Loader120 MT is the largest mini skid steer in our line up. Powered by the reliable D1703 Kubota Diesel engine, coupled with a high displacement Italian made pump. this mini skid steer has a rated operating capacity of 1400 lbs. Standard with self leveling, float function and a smartgen system, This is the best mini skid steers on the market.
X-loader 120MT Mini Skid Steer Specifications
| Key Specifications | |
|---|---|
|
Engine |
Kubota D1703-M Engine
|
|
R.O.C
|
1400 Lbs. |
|
Transmission |
Danfoss Hydraulic motors
|
|
Speed |
0-8 KM/H |
|
Length |
84 inches |
|
Width |
36 inches |
|
Height |
62 inches |
|
Weight |
3637 Lbs |
|
Pump |
Bondioli & Pavesi High DP |
|
Hydraulic Flow |
12-16 GPM |
|
Start Method
|
Pass code |
|
Attachment Plate
|
Universal |
|
Max Height |
85 inches |
|
Fuel Tank
|
32 L |
|
Hydraulic Tank |
32 L |
|
Track Size |
200x72x45 |
|
Track Tension |
grease tensioner
|
|
Operating Style
|
Standard ISO controls |
|
Ground Pressure
|
0.289 kgf/cm2
|
|
System Pressure
|
2610 PSI
|
X-loader 120MT Mini Skid Steer Features
The X-Loader 120MT is designed for versatility, compact power, and efficiency. It combines high lifting capacity with a small footprint, making it perfect for both construction sites and landscaping projects.
It is powered by a reliable Yanmar diesel engine, known worldwide for durability, fuel efficiency, and low emissions.
The X-Loader 120MT delivers impressive lifting capacity while maintaining excellent stability, allowing operators to handle heavy materials safely and efficiently. (You can specify the exact lifting capacity once available.)

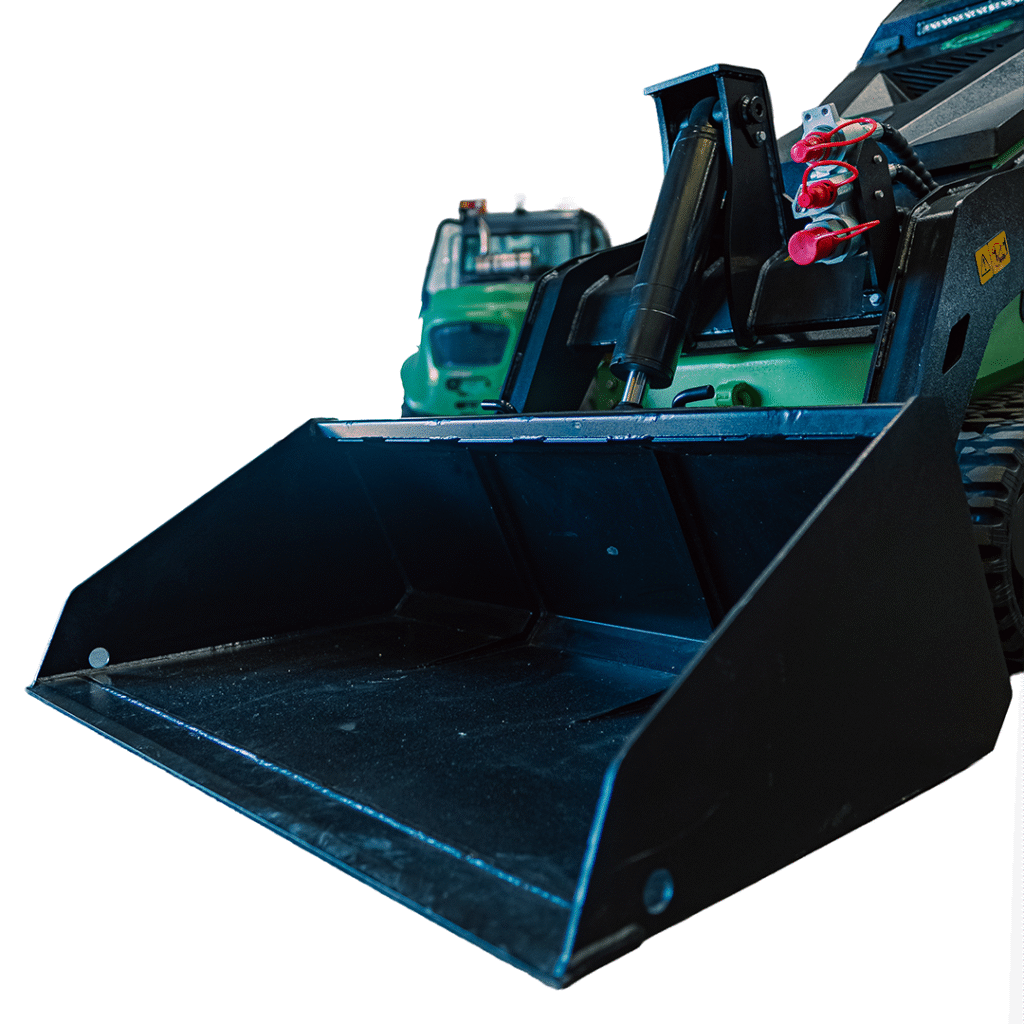

It supports a wide range of attachments, including buckets, pallet forks, augers, trenchers, and more—making it a truly multi-purpose machine.
Yes! It’s built with globally recognized components like Danfoss motors, Walvoil controls, and Donaldson filters, ensuring easy access to parts and straightforward maintenance.
